Trinity RGH3
For Trinity Motherboard Slim "S" 360's
RGH3 has been released by 15432 twoard the end of 2021.
It represents a major breakthrough with RGH as it now leverages functionality directly in the southbridge to accomplish the glitch boot and does not require a separate glitch chip.
I believe that RGH3 Process should take over for all Trinity model consoles you mod moving forward. It's INSTANT booting, and only a 2 wire install.
Guide to RGH3 Xbox 360 Trinity Motherboard Consoles!
- You might want an X-Clamp removal tool to make opening the console easier. It's been suggested to me that the X-clamp remover should be in the "required" supplies. For sure the X-Clamp can be removed without them, but the risk of damaging your board is very high if you're not very careful. You might want to check out this video clip of using the X-Clamp removal tool properly to see what you are up against.
Trinity motherboards can be confidently identified visually without opening the console. First, It must be an "S" style slim Xbox 360. Second, check the MFR date on the sticker on the back of the console - Trinities will have a MFR date of 07/2011 and before. Third, and least reliably - look at the power consumption sticker on the back; Trinity consoles will say 10.83A though I've seen consoles close to the cut-over manufacture date have the wrong power label.
2. Open up your console and break it down all the way to the motherboard. (Lots of guides on youtube for opening your console.)
You need a T8 and a T10 Torx screwdriver for all the screws in the console. You will end up removing the heatsink and fan, which means removing the X-clamp on the back. You might want an X-Clamp removal tool, and some replacement thermal paste. The stuff on the console will be old and dried up so I strongly recommend putting fresh thermal paste.
3. Solder in a Nand reading/writing programmer.
There are myriad options for programmers: Nand-X, JR Programmer, Matrix SPI Flasher, Squirt Slave Programmer, X-Flasher 360, Super Nand Flasher, PicoFlasher, or even a homemade LPT cable!
If you're only going to do this one mod, my favorite device right now is the Raspberry Pi Pico set up as a PicoFlasher, you can snag the Pico off Amazon for just $8, but the best deal is at a MicroCenter or other major electronics reseller where they are just $4!

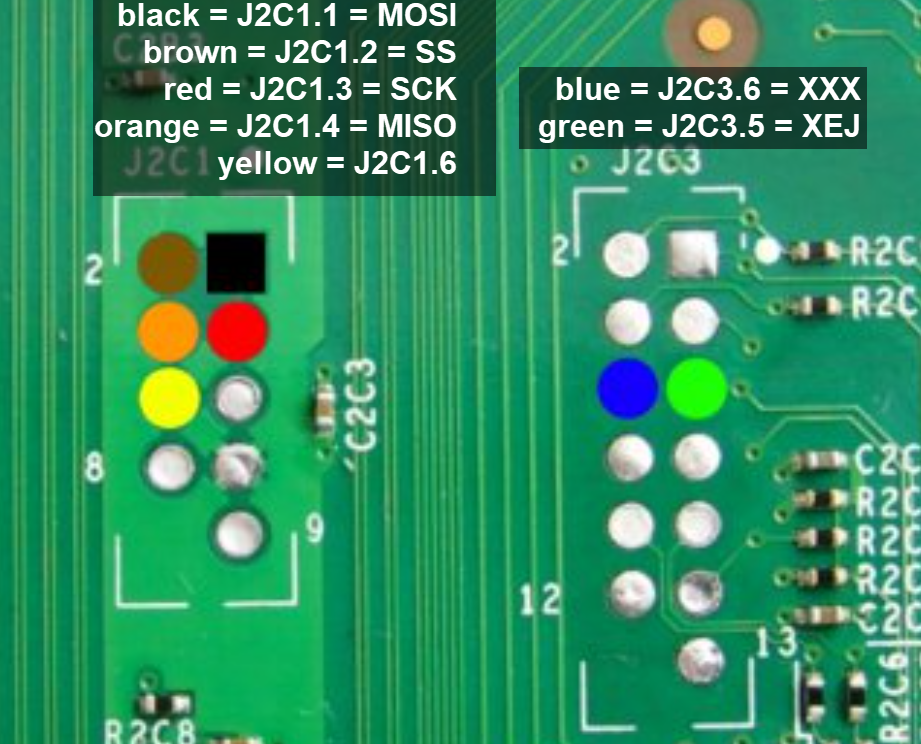

No matter what device you decide on to read/write your nand they are likely to use the color coding in the diagram below as it's essentially a standard now, shared by the Nand-X, JR-Programmer, X-Flasher. All the programmers will use the same point even if they don't respect the color coding.
4. Dump (read) the nand twice and ensure both copies you took match.

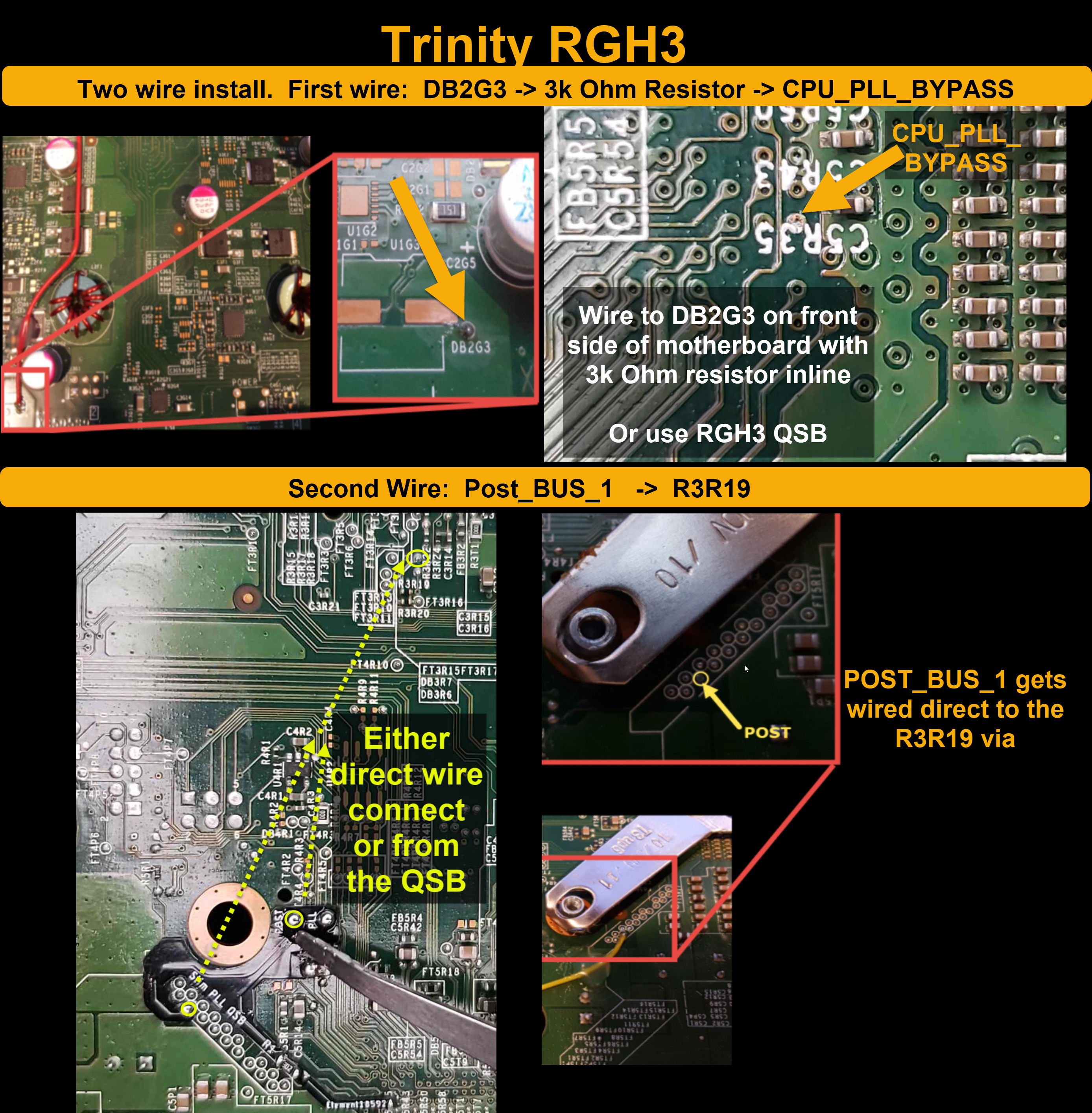

5. Install the DB2G3 -> 3K Ohm Resistor -> CPU_PLL_BYPASS connection as shown in the image above.
You might find the RGH3 QSB useful there, but it is NOT required - you can direct wire install. Do not skip the 3K Ohm resistor for safety as you can damage your console without it!
6. Install the POST_BUS_1 -> R3R19 connection as shown in the image above.
No resistor is required between POST and R3R19 - just direct wire it, or use the RGH3 QSB
7. Write the RGH3 precompiled ECC file and boot Xell to get your CPU key
I believe both Jrunner with Extras and Jrunner Pro support RGH3 just fine these days. Flash the ECC Files -> Trinity -> RGH3_Trinity.bin file to the console. Then boot up your console and be amazed how quickly it boots Xell. Note down the CPU key.
8. Enter your CPU key into Jrunner, build a full RGH3 nand image, write that newly created nand image (updflash.bin) to the console.
When you plug your CPU key into Jrunner, the "KV Info" sub tab on the right should populate with all the decrypted nand data like your consoles serial number. Make sure you have the right options selected for RGH3 when you 'create xebuild image'.
9. Boot up and enjoy your RGH'd Console!
Now you can install XexMenu, FreeStyle Dash, Aurora Dash, a bunch of different emulators - and yes, even the football revamped game.
