Pico Firmware and compatible Jrunner version
It's probably best to get the .uf2 firmware files from the Releases page on the PicoFlasher project on Github
My go-to Jrunner source is Josh's build which he kindly hosts at Octals Console Shop Jrunner with Extras
But there is an alternative branch that sometimes gets out of sync feature-wise and is on Github under X360Tools like PicoFlasher:Jrunner Pro
Reference Install Images

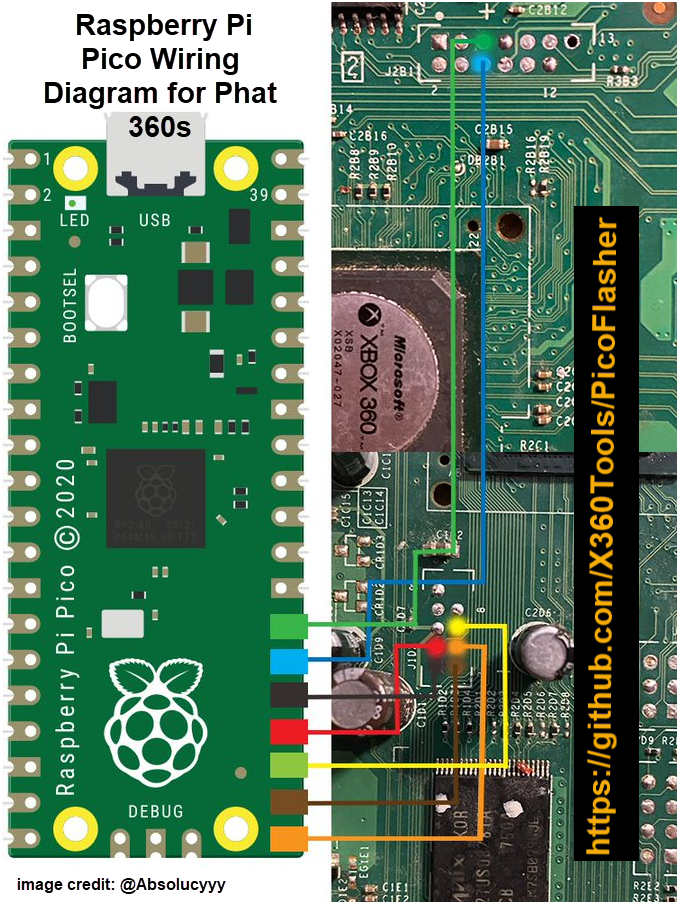

Phat Wiring Diagram

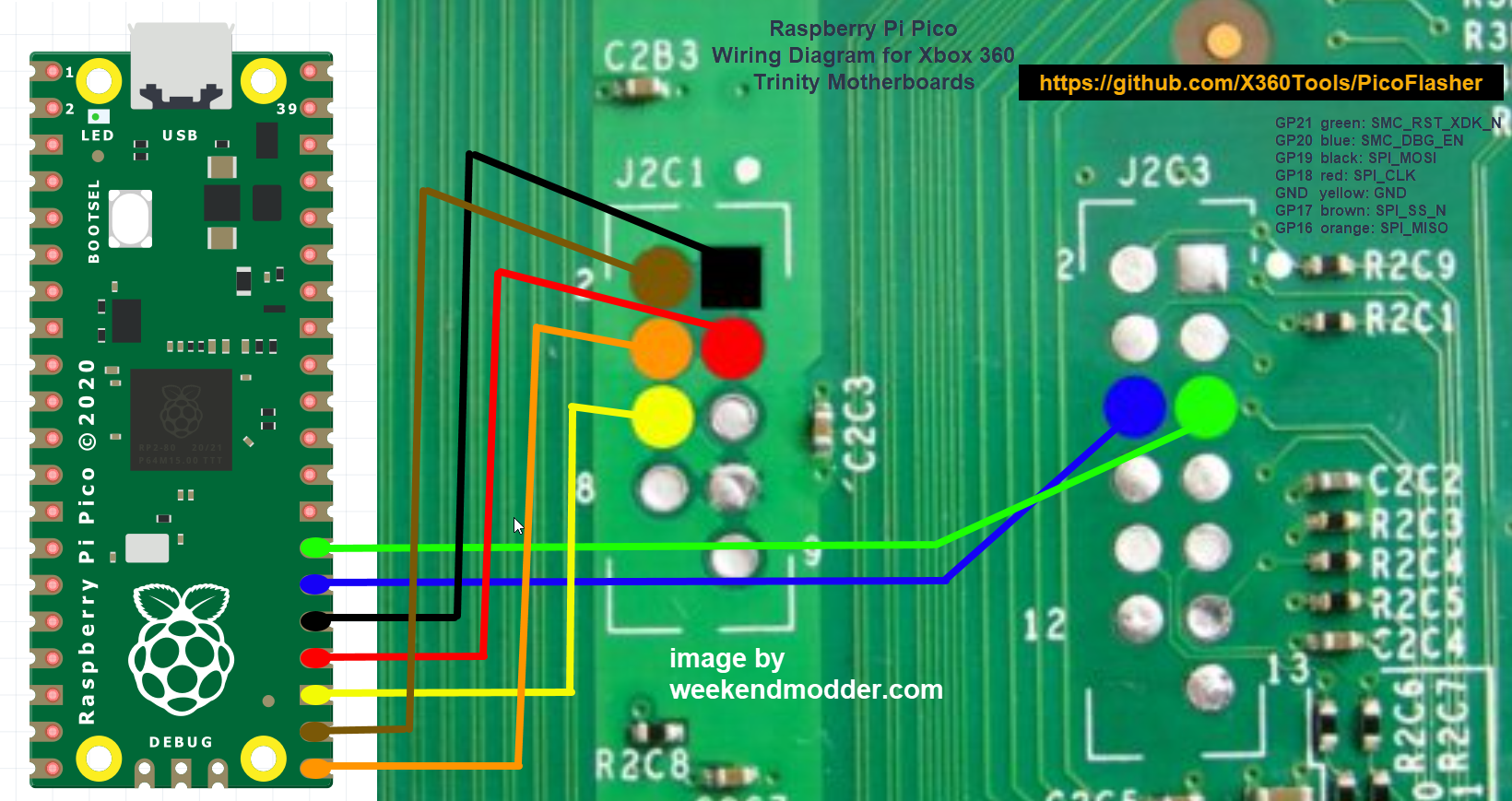

Trinity Wiring Diagram

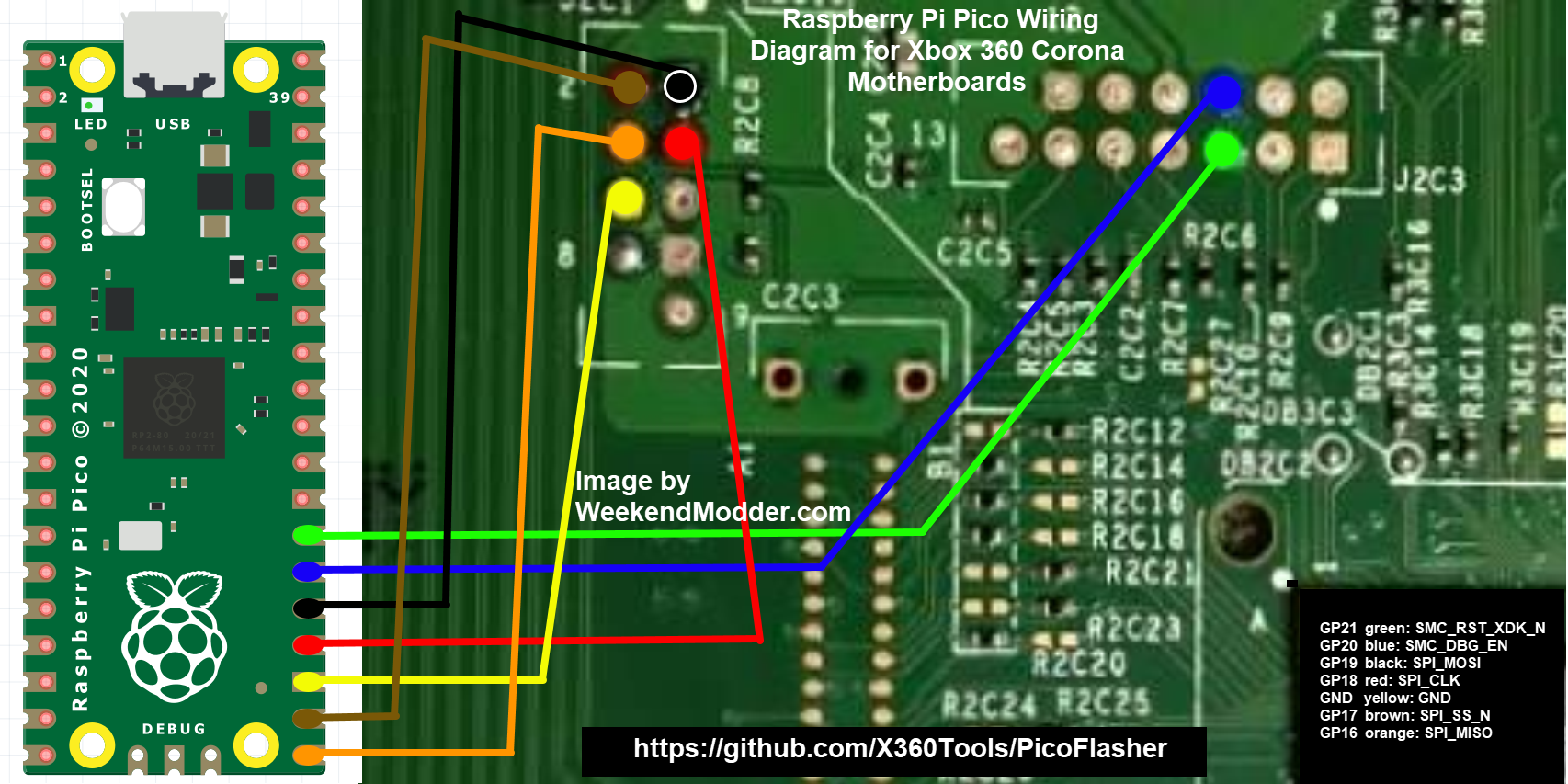

Corona Wiring Diagram
On some Corona Motherboards the resistor R2C10 near the J2C3 header may not have a 0 ohm resistor bridging it.
As with all other nand readers, the PicoFlasher requires that R2C10 be bridged for nand R/W to work
So if your R2C10 is open, bridge it closed.

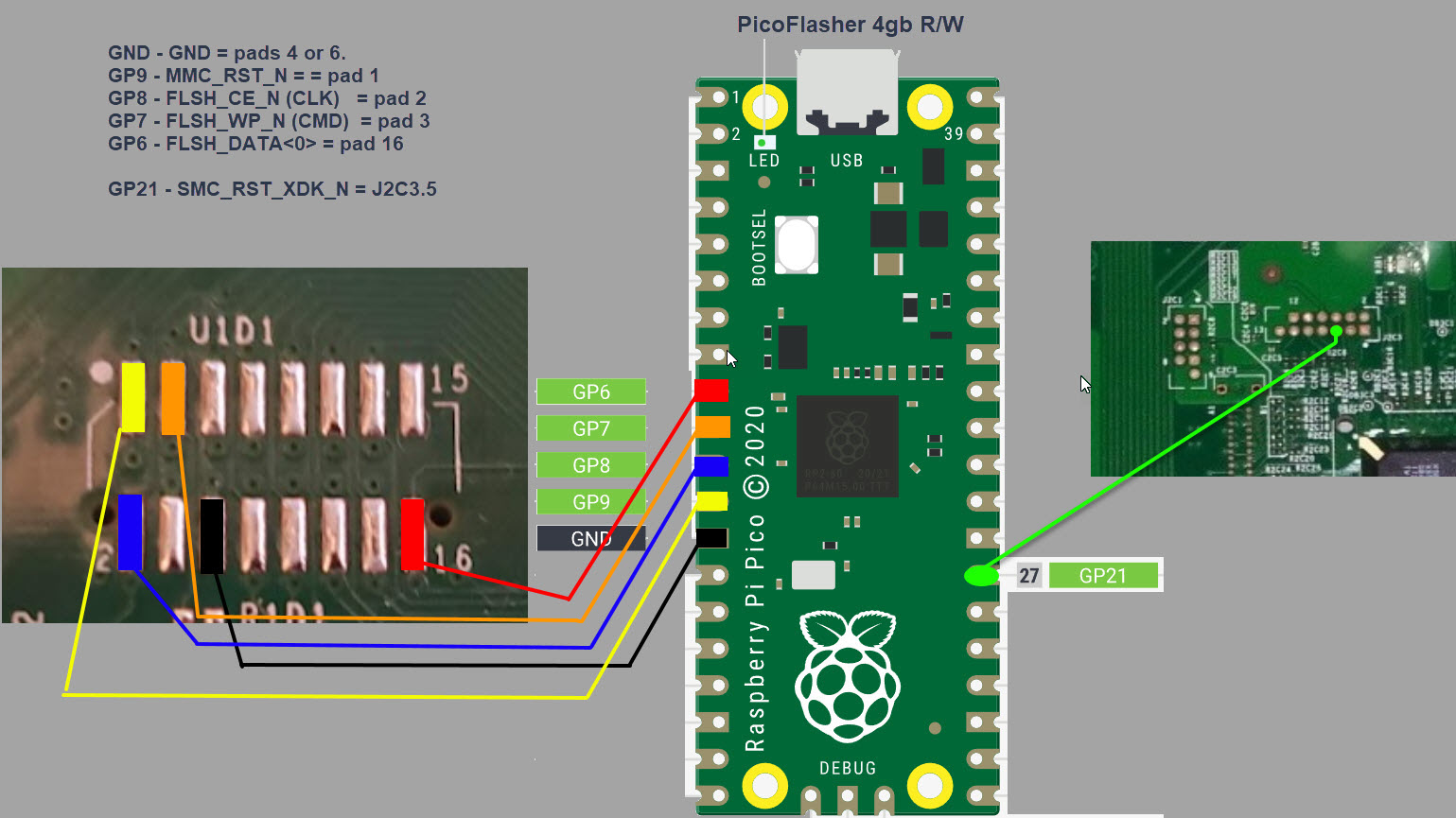

Corona 4gb Nand Reading Wiring Diagram
This requires PicoFlasher firmware version 2 at least, and you might need the latest Jrunner Pro from the same parent repository that PicoFlasher is in now.
When using the PicoFlasher to read 4gb Nands I find that this order leads to the most success:
- Solder in the wires from PicoFlasher to the Console (suggest my custom cable set with pin header)
- Connect the wires to the PicoFlasher (If using my wire set, just plug in the header)
- Open Jrunner on your PC
- Apply standby power to the console (Connect power supply but don't turn on the console)
- Connect the USB to the PicoFlasher
- Click on "read nand" in Jrunner
Additional NOTE: On some Corona Motherboards the resistor R2C10 near the J2C3 header may not have a 0 ohm resistor bridging it.
As with all other nand readers, the PicoFlasher requires that R2C10 be bridged for nand R/W to work
So if your R2C10 is open, bridge it closed.
